Roll Center and Bump Steer Explained: Why They Matter for Your E9X BMW

When you lower your car for better stance and handling, you’re not just changing how it looks you’re also changing its suspension geometry. Two of the most important factors that get affected are roll center and bump steer. Understanding these concepts will help explain why our new front roll center & bump steer correction kit and rear roll center correction kit are so important for the E9X platform.

What is Roll Center?

The roll center is an imaginary point that represents how the suspension geometry resists body roll.

• The closer the roll center is to the car’s center of gravity (CG), the less the body will lean in corners.


• Lowering a car often pushes the roll center much further down and away from the CG, creating a larger “roll couple.” This increases body roll, makes the suspension less efficient, and can reduce front-end grip.


Example:
On a lowered E90/E92, the front lower control arms can end up pointing uphill toward the hubs. This drags the roll center down and exaggerates body roll, even with stiff springs and sway bars.

What is Bump Steer?

Bump steer refers to unwanted changes in toe (the steering angle of the wheels) as the suspension moves through its travel. Ideally, the wheels should move up and down without steering themselves.

• Excessive bump steer means that hitting a bump with just one wheel can cause the steering wheel to tug in your hands, or even steer the car in an unintended direction.


• On track, this can reduce driver confidence. On the street, it can make the car feel nervous and unpredictable.



Example:
If your E92 hits a mid-corner bump with only one wheel, excessive bump steer can steer the car abruptly, forcing you to correct mid-turn.

How Our Kits Solve These Problems

Front Roll Center & Bump Steer Kit

Our front kit includes precision-machined aluminum spacers that bolt in between the OEM arms and knuckles. These spacers realign the suspension geometry on lowered cars by:

• Raising the roll center: Keeps the front control arms closer to level, reducing body roll and improving steering response.


• Correcting bump steer: On our shop car we moved the suspension through its travel from a 60mm wheel to fender gap (very low)  to our ride height set to a 75 mm fender gap, toe only changed by 0.01” per side virtually eliminating bump steer with such a simple bolt in mod.


• Better ride/handling balance: Less geometry-induced steering movement, more confidence at speed.



Rear Roll Center Correction Kit

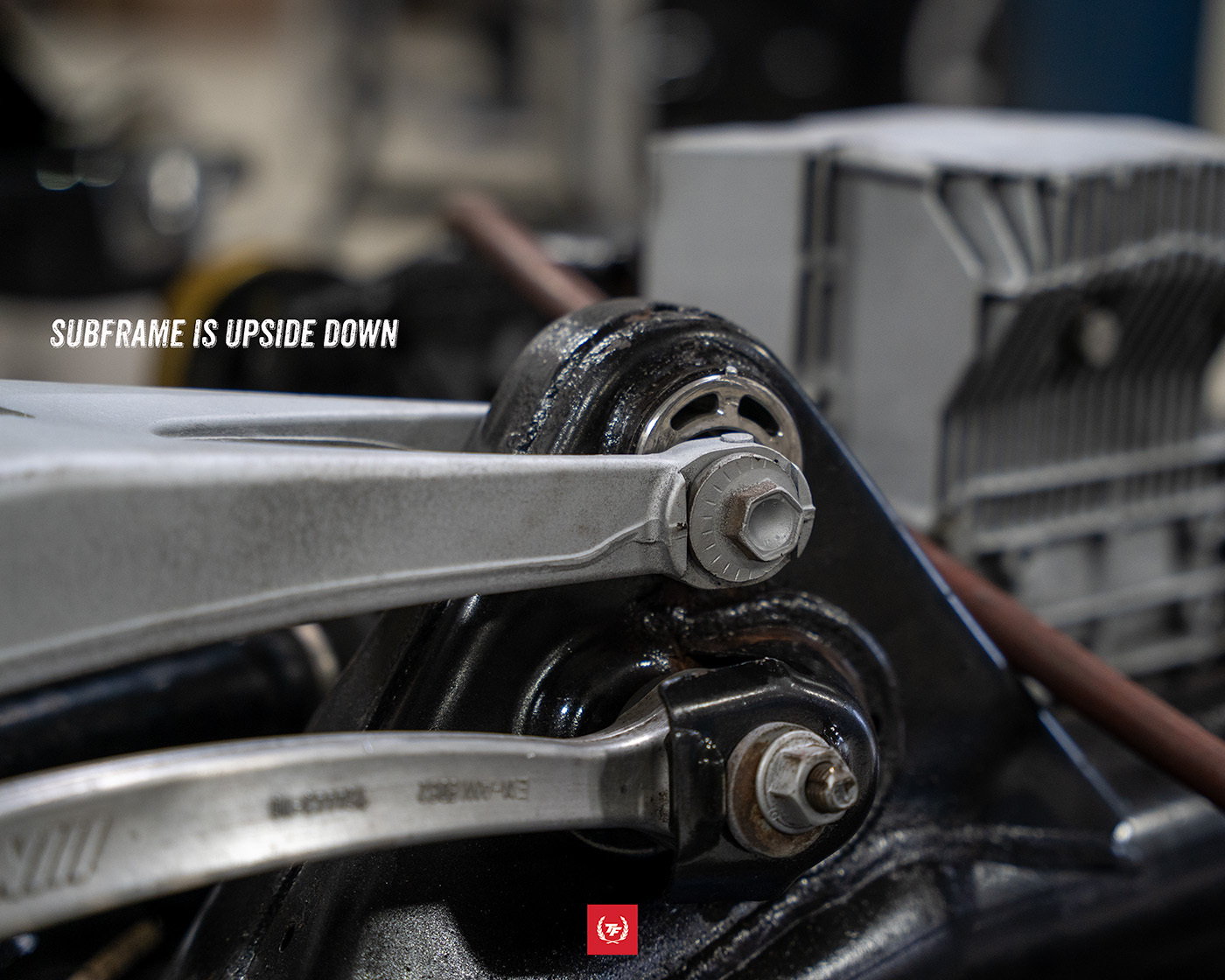

In the rear, our kit moves the camber arm’s inner pivot point upward and converts to a high quality Aurora spherical, which levels the arm back out at lowered ride heights and eliminates dynamic kinematic changes due to rubber bushings. The benefits:

• Restores ideal camber curve: Keeps tires in the sweet spot of grip instead of over-cambering under compression.


• Improves traction and stability: Especially noticeable when powering out of corners on a lowered E9X.

• Eliminates unwanted kinematic changes due to oem rubber bushings.



The Bottom Line

Lowering your car is about more than looks—it changes suspension geometry in ways that can hurt performance. By correcting roll center and bump steer, our kits let you run your E9X low lowering the center of gravity without sacrificing stability, grip, or steering precision.

If you’ve ever felt your steering tug over bumps, or noticed extra body roll despite stiff suspension, these are signs your geometry needs correction. Our new front roll center & bump steer kit and rear roll center correction kit give you back the sharp, predictable handling BMWs are known for even when lowered.
